AUTOMATIC MESH APPLICATION SYSTEM
Automatic Reinforcing Mesh Application for Slab Resin Lines
The Automatic Mesh Application System is designed to apply reinforcing mesh continuously and accurately to natural-stone slabs during the resin-treatment process.
Description & Technical Details
The Automatic Mesh Application System is designed to apply reinforcing mesh continuously and accurately to natural-stone slabs during the resin-treatment process.
The machine automatically unwinds the selected mesh, applies it evenly onto the resin-coated slab and cuts it according to the detected slab length. An automatic slab-reading system determines the required mesh length, while the cutting position can be advanced or delayed according to the production requirements.

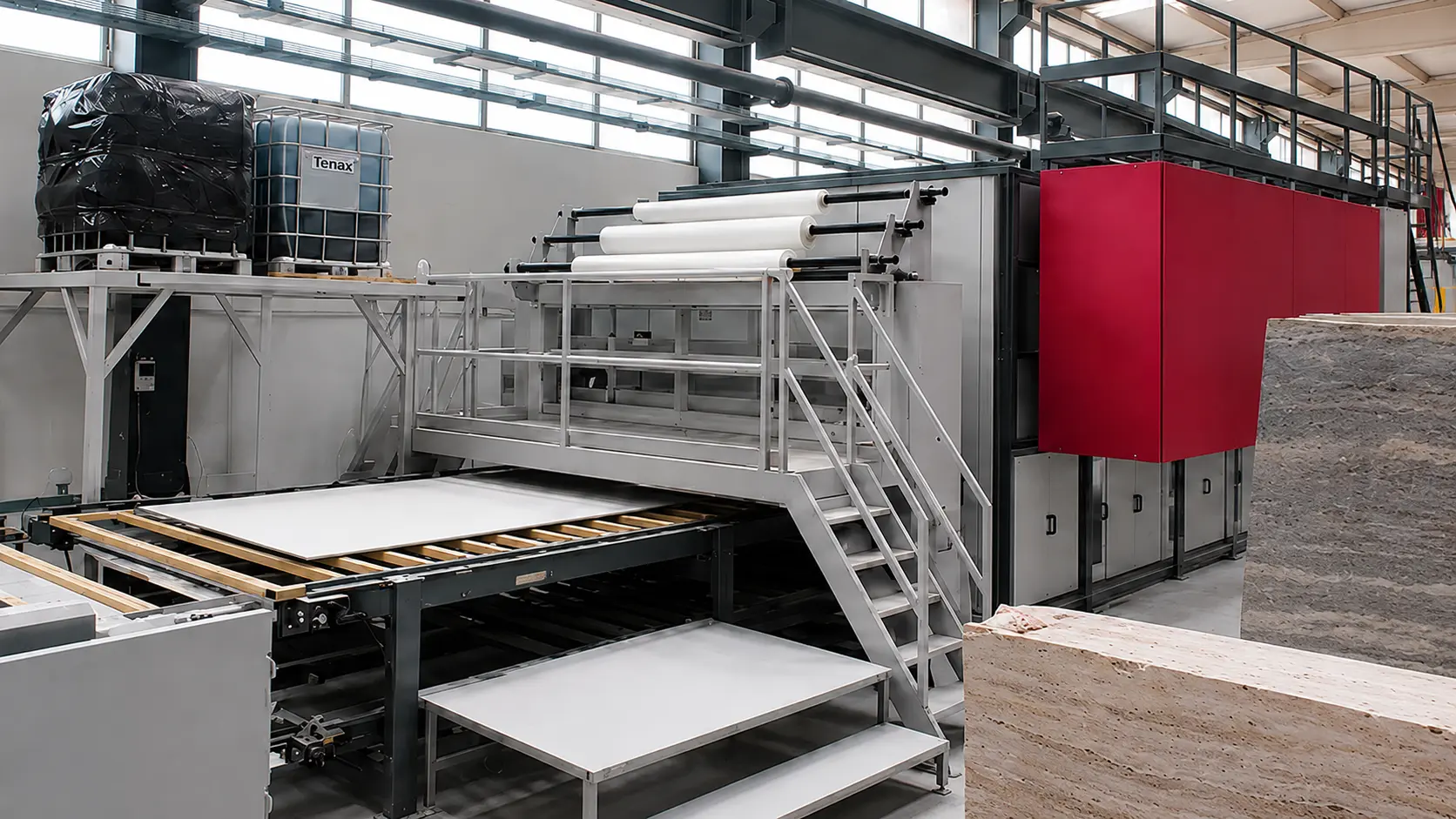

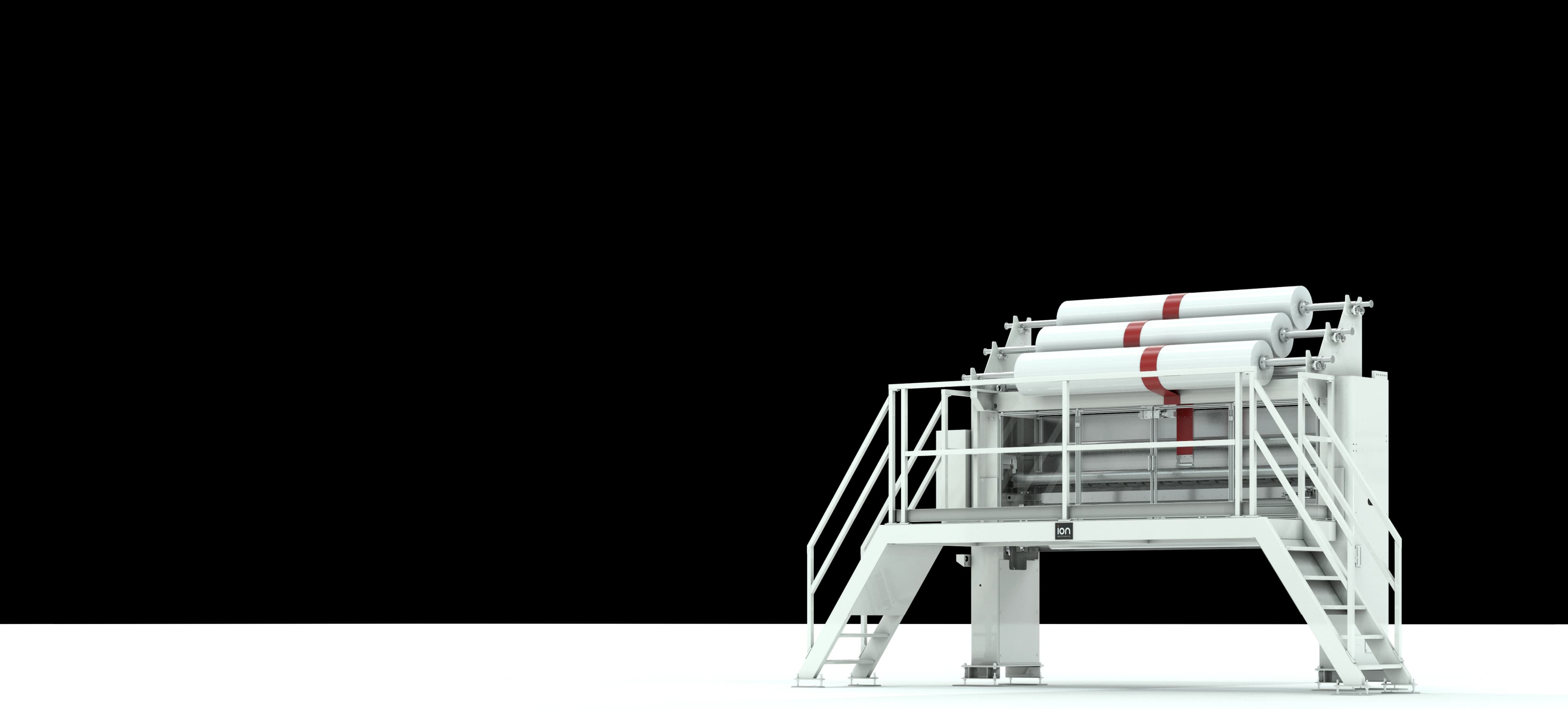

The standard configuration includes three mesh-roll holders, allowing different reinforcement materials or roll sizes to be prepared for production. A motor-driven unwinding system feeds the mesh, while a vertically moving, rubber-coated pneumatic roller presses it uniformly onto the slab surface.
At the end of the application cycle, the mesh is held securely by double grippers and cut automatically by a transversely moving shear system. An elevated service platform provides safe access for roll replacement and mesh threading.
The system can be integrated directly into automated marble and granite resin-treatment lines, supporting consistent reinforcement quality while reducing manual handling and material waste.
• Automatic application of reinforcing mesh
• Integration with continuous slab resin-treatment lines
• Automatic slab-length detection
• Programmable mesh-cutting position
• Three mesh-roll holders
• Motor-controlled mesh unwinding
• Pneumatically operated rubber-coated application roller
• Adjustable vertical roller movement
• Double grippers for secure mesh retention
• Automatic transverse cutting system
• Consistent mesh positioning across the slab surface
• Reduced manual handling and material waste
• Elevated service platform for roll replacement and mesh threading
Photos & Videos
Planning a project with AUTOMATIC MESH APPLICATION SYSTEM?
Share your material, slab size and capacity target, and we will prepare the right configuration and quotation for you. Technical data sheets are available on request.
