2-Tower Static Resin Line
Separated Static Slab Drying and Resin Curing Line
Provides greater thermal capacity and process flexibility by separating slab drying and resin curing between two static oven towers.

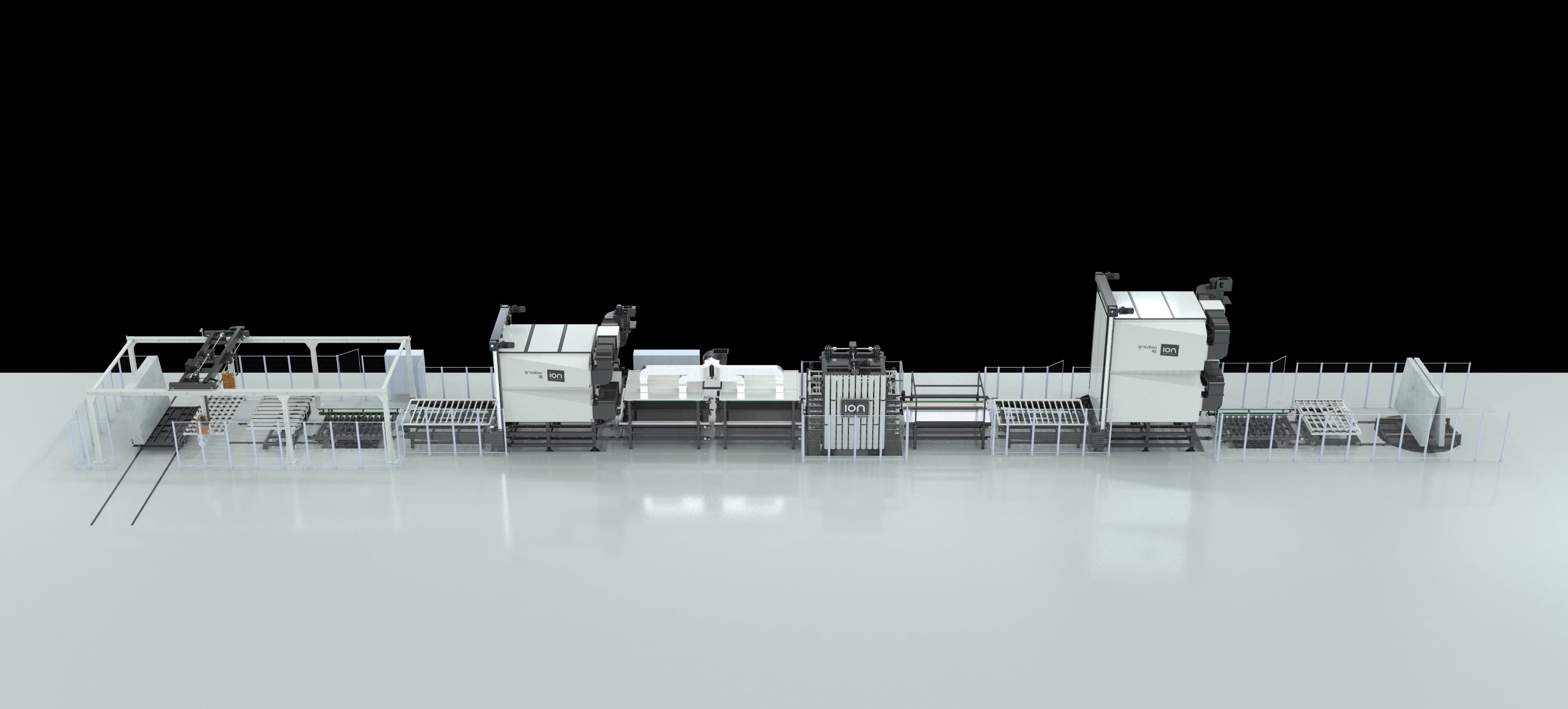

Process Flow
Typical station sequence of the line; the slab moves from left to right. The final layout depends on the selected configuration and the factory layout.
Description & Technical Details
The 2-Tower Static Resin Line provides greater thermal capacity and process flexibility by separating slab drying and resin curing between two static oven towers.
One tower is typically dedicated to drying slabs before resin application, while the second provides the controlled thermal environment required for resin polymerisation. The temperature, airflow and residence time of the two processes can therefore be managed independently.
The system is built with two standalone GRAVITON towers.
For one-side treatment, slabs move from the drying tower to resin application and then to the curing tower. For double-side treatment, the same line also incorporates reverse-side reinforcement, automatic slab turning, visible-face resin application and the required subsequent curing stages. The number of tray levels in each tower is selected according to the required production output, drying time, curing time and resin-line architecture.
| Treatment | One-Side Treatment | Double-Side Treatment |
|---|---|---|
| Production capacity | up to 24 slabs/hour | up to 12 slabs/hour |
Nominal capacity depends on slab dimensions, material characteristics, resin system, treatment recipe and selected equipment configuration.
- ARANEA Overhead Slab Handling Robot, including direct loading from gangsaws where applicable
- 2 × GRAVITON Static oven towers
- PBU01 Slab Buffer and Initial Gelation Station
- RESINBOT Automatic Resin Application Robot
- MESH APPLICATION Automatic reinforcing-mesh application system
- PCK01 Slab Rotating Conveyor for double-side treatment
- VAC01 Inline Vacuum Chamber, optional
- MANTA-U or ARANEA Automatic Slab Unloading
• Independent control of slab drying and resin curing
• Greater thermal capacity than a single-tower static line
• One-side and double-side treatment configurations
• Customer-specific number of tray levels
• Controlled static residence time for each slab
• Balanced drying and curing capacity
