3-Tower Static Resin Line
High-Capacity Double-Side Resin Treatment Line
Designed for automated double-side resin treatment of marble, granite and other natural-stone slabs.
Process Flow
Typical station sequence of the line; the slab moves from left to right. The final layout depends on the selected configuration and the factory layout.
- 2 3 × GRAVITON Static oven towers
- 6 INSPECTION STATIONS Manual inspection and resin repair stations
CONVEYOR SYSTEM — Automatic conveyors, slab trays and tray-return circuit · CONTROL SYSTEM — Central industrial control and production-monitoring system
Description & Technical Details

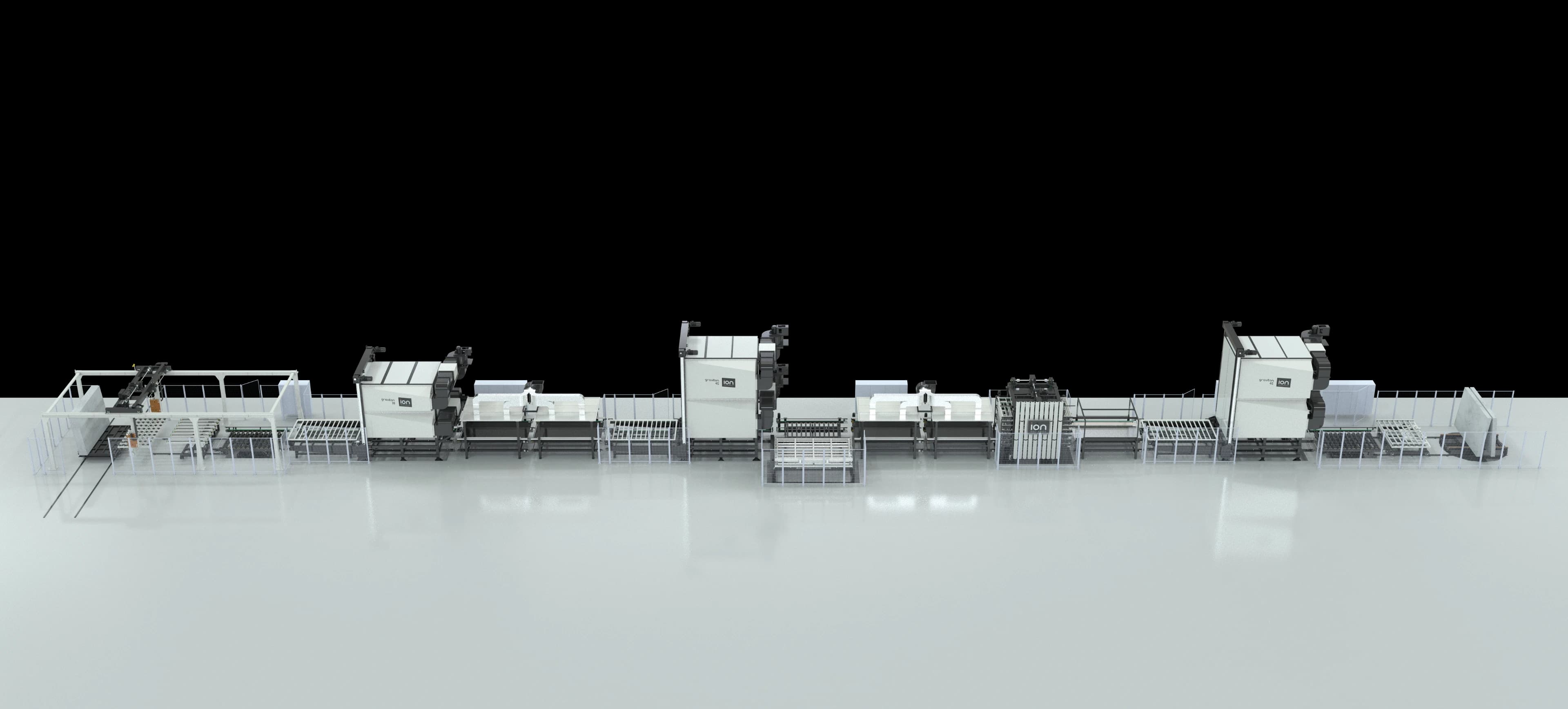

The 3-Tower Static Resin Line is designed for automated double-side resin treatment of marble, granite and other natural-stone slabs.
Three static oven towers allow the principal thermal stages to be separated between slab drying, reverse-side resin curing and final curing after treatment of the visible surface.
A typical process begins with controlled slab drying before resin application. The reverse face is then treated and reinforced with mesh where required before entering the first curing tower. After curing, the slab is turned automatically, treated on its visible face and transferred to the final curing tower.
This separation provides dedicated thermal capacity for each principal stage. It reduces competition between drying and curing operations and allows the required residence time of each process to be managed independently.
The line is built with three standalone GRAVITON towers. The 3-Tower Static Resin Line is particularly suitable for porous, fissured or structurally delicate materials requiring controlled reinforcement on both slab surfaces.
| Treatment | Treatment |
|---|---|
| Cycle time | 2.5 minutes |
| Production capacity | up to 24 slabs/hour |
Nominal capacity depends on slab dimensions, material characteristics, resin system, treatment recipe and selected equipment configuration.
- ARANEA Overhead Slab Handling Robot, including direct loading from gangsaws where applicable
- 3 × GRAVITON Static oven towers
- PBU01 Slab Buffer and Initial Gelation Station
- RESINBOT Automatic Resin Application Robot
- MESH APPLICATION Automatic reinforcing-mesh application system
- INSPECTION STATIONS Manual inspection and resin repair stations
- PCK01 Automatic Slab Rotating Conveyor
- VAC01 Inline Vacuum Chamber, optional
- MANTA-U or ARANEA Automatic Slab Unloading
- CONVEYOR SYSTEM Automatic conveyors, slab trays and tray-return circuit
- CONTROL SYSTEM Central industrial control and production-monitoring system
• Three independently configurable static oven towers
• Dedicated drying, reverse-side curing and final-curing stages
• Controlled double-side slab resin treatment
• Greater thermal capacity and process stability
• Customer-specific number of tray levels
• Static residence time controlled for every slab
• Improved balance between drying and resin polymerisation
• Suitable for porous, fissured and structurally delicate materials
• Automatic resin application, mesh placement, slab turning and handling
